3D Step Model: UQFN-36

Good day,

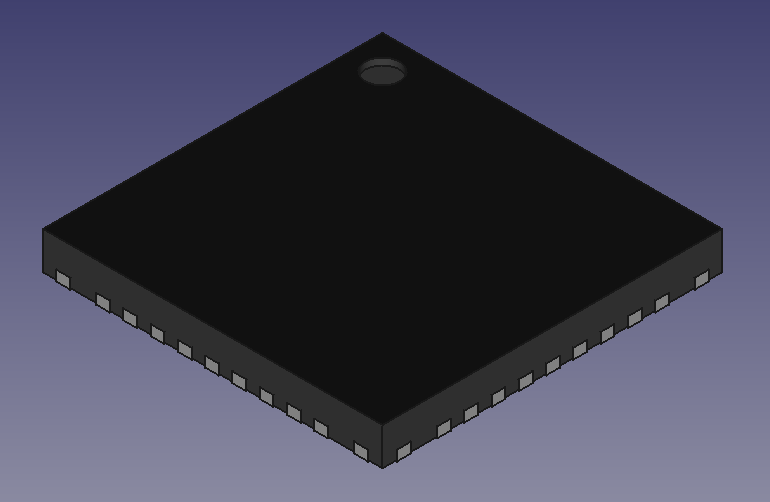

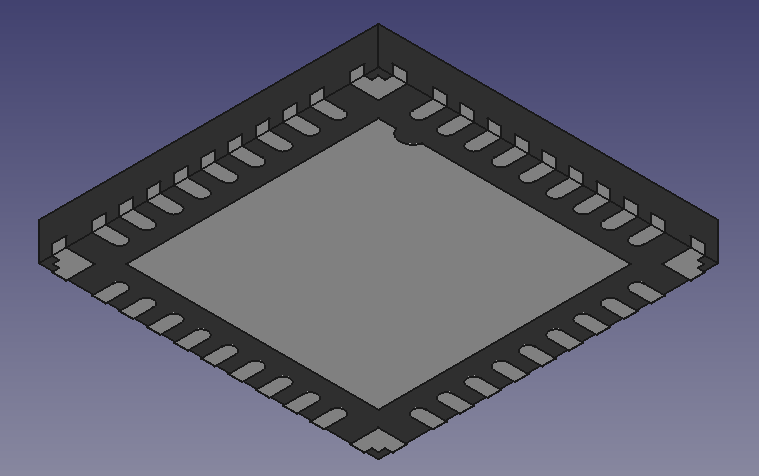

Microchip did not have the 3D CAD step file for the DSPIC33CH128MP503-I/M5 (uqfn-36, 0.4mm pitch) package. They do have the footprint and component files. I used FreeCAD to make the 3D package I needed.  Free to download and use as you wish, happy if you give credit to my blog.

Zipped File: UQFN36_5x5x0.4_MCH.step

Enjoy!
